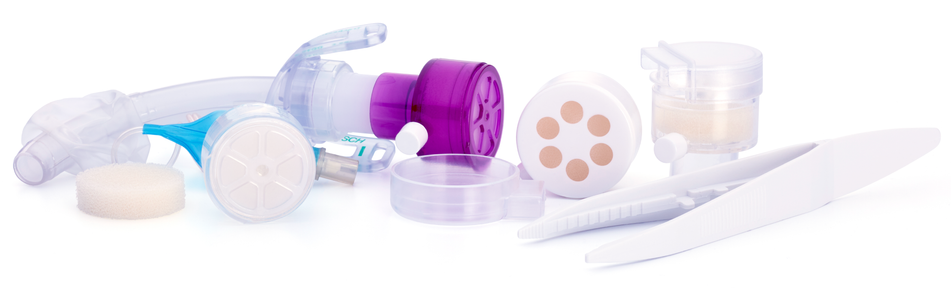

Permanent wearing of tubes often lead to great strain on themselves, the doctors attending them and the whole medical service. We have attempted to make the functions of air-flow, coughing and speech easier. The speaking valve "SPIRO^®" is an important step in this direction.Tracheal tubes with form-fitting fenestration are easily equipped with this new aid, giving patients an enhanced quality of life, particulary children and other sesceptible patients.

SPIRO^® is developed in collaboration with Danderyd
Hospital, Stockholm. Danderyds Hospital is one of the largest hospitals in Sweden with specialists in anaesthesiology and breathing care.

Go to Danderyds Hospital

Advantages With SPIRO^® Speaking Valve

Low weight

Optimal Oxygen

Connection

Better/Cleaner

Inhaled Air

Low Resistans

When Inhaling

Simple Filter Management

Quite / Accurate

Feature

Speaking Valve with filtration, Humidifier and Heat Exchanger

Inhalation will be easier as the silicone membrane closes immediately during expiration. This gives good speech function and ensures that, during coughing, the filter and Speaking Valve are not affected by secretions. The stenosed area will be positively effected, with less tendency of scarring from laser treatment. The exhaled air functions as a permanent dilator of the stenosed area. The valve house has a nipple with simple connection, through which oxygen can be provided when needed.

Significant Patient Advantages

The development of SPIRO^® has lead to the elemination of common problems for intubated patients. SPIRO^® is small, convenient and very light compared with other speech aids. It can be worn discretely under the patients clothes. SPIRO^® is also very easily handled by all types of patient. The whole valve can be removed and applied in one simple operation. When required the filter housing can be cleaned with fresh water and the filter replaced.

SPIRO Reduces the Costs

SPIRO^® is a complete system using replacement filters held in filter housing. One is transparent with Speaing Valve, humidifier and pre-warming of the air. The other is white with a moistening and air-warming function. The easy handling, changing of filters and parts, and the several functions within the same unit, makes SPIRO^® very cost-effective.

HME

Heat Moistuirising Exchange (HME) for spontaneous breathing tracheostomy users.

SPIRO^® 702

SPIRO^® 702 Humidifier is a Heat Moisture Exchange (HME) for spontaneous breathing tracheostomy users. This device provides comfortable heat and moisture to the user and prevents course particles from entering the respiratory system. The device has an exchangeable filter. The device housing and cover can be re-used multiple times with correct care. The user cannot speak with this device and is to be used when resting or sleeping. Supplementary oxygen can be delivered through the integrated oxygen nipple.

For instructions of use, click here

SPIRO^® 710

SPIRO^® 710 Speaking Valve with oxygen nipple for spontaneous breathing tracheostomy users. Intended to allow the user to speak without the need for finger occlusion. Also provides back pressure for other common body functions. Exchangeable filter to prevent course particles entering the respiratory system. The main valve housing can be re-used multiple times with correct care. When resting or sleeping the SPIRO^® 702 Humidifier shall be used. Supplementary oxygen can be delivered through the integrated oxygen nipple. This transparent device is recommended for use in the home care environment.

For instructions of use, click here

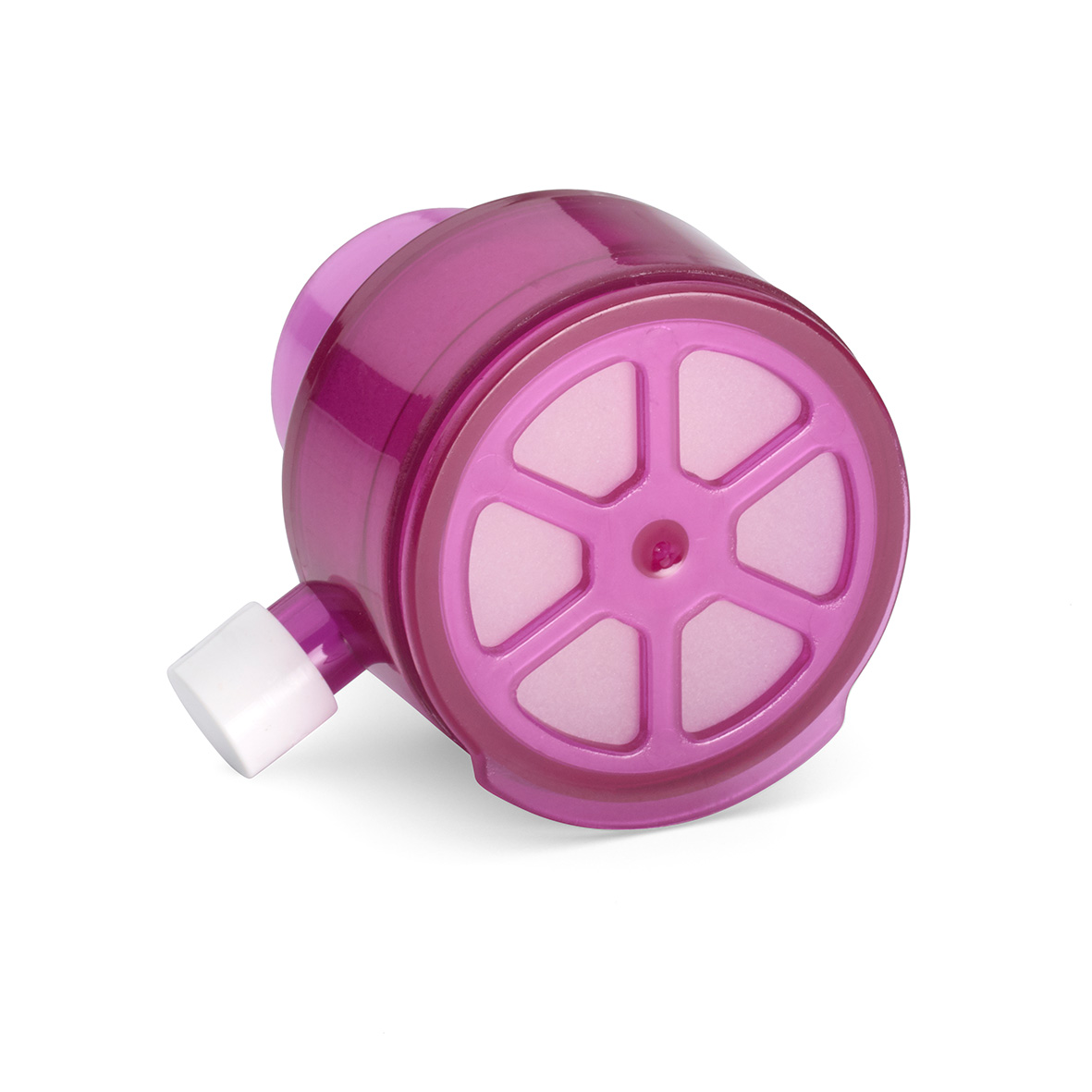

SPIRO^® 710 R

SPIRO^® 710R Speaking Valve with oxygen nipple for spontaneous breathing tracheostomy users. Intended to allow the user to speak without the need for finger occlusion. Also provides back pressure for other common body functions. Exchangeable filter to prevent course particles entering the respiratory system. The main valve housing can be re-used multiple times with correct care. When resting or sleeping the SPIRO^® 702 Humidifier shall be used. Supplementary oxygen can be delivered through the integrated oxygen nipple. This coloured device is recommended for use in the emergency or intensive care hospital environment.

For instructions of use, click here

Speaking Valve

SPIRO^® speaking valve with oxygen nipple for spontaneous breathing tracheostomy users.

SPIRO^® 711

SPIRO^® 711 Speaking Valve for spontaneous breathing tracheostomy users. Intended to allow the user to speak without the need for finger occlusion. Also provides back pressure for other common body functions. Exchangeable filter to prevent course particles entering the respiratory system. The main valve housing can be re-used multiple times with correct care. When resting or sleeping the SPIRO^® 702 Humidifier shall be used. This transparent device is recommended for use in the home care environment.

For instructions of use, click here

Accessories

Filters, Shower Protector

SPIRO^® 740

SPIRO^® 740 Filter. Exchangeable filter which is compatible with both the SPIRO^® 702 Humidifier and SPIRO^® 710, 710R and 711 Speaking Valves. The filter prevents course particles from entering respiratory system.

For instructions of use, click here

SPIRO^® 703

SPIRO^® 703 Shower Protector for use with the SPIRO^® 702 Humidifier. Intended to prevent water splash entering the tracheostomy opening when the user is showering. Can also can be used to direct warm air from the body in cold climates. Transparent in colour.

For instructions of use, click here

SPIRO^® 730

SPIRO^® 730 Shower Protector for use with the SPIRO^® 710, 710R and 711 Speaking Valves. Intended to prevent water splash entering the tracheostomy opening when the user is showering. Can also be used to direct warm air from the body in cold climates. Transparent in colour.

For instructions of use, click here

SPIRO^® 705

Tweezers. For use when exchanging the Filter (740) in the following: SPIRO^® 702 Humidifier, SPIRO^® Speaking Valves 710, 710R and 711.

For instructions of use, click here

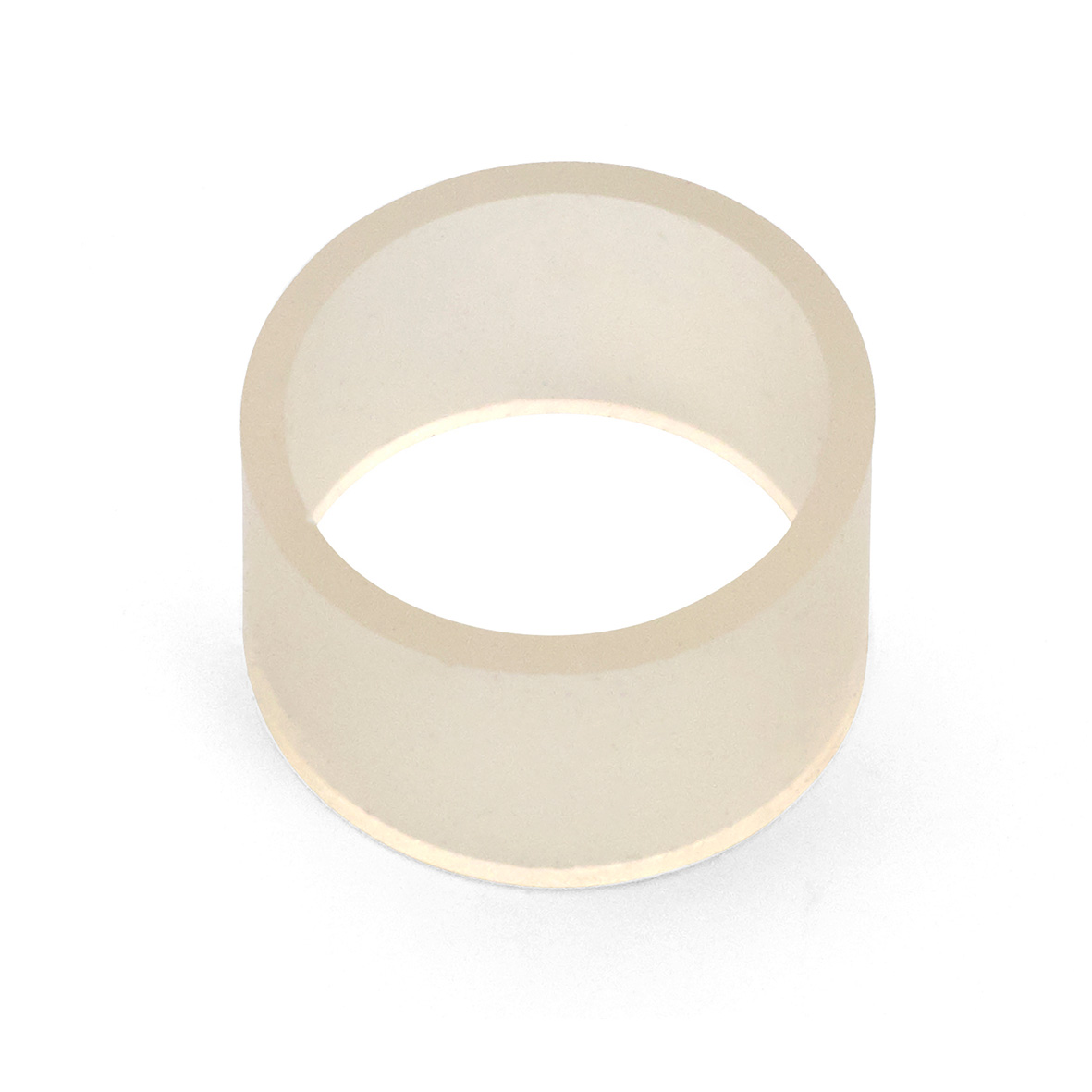

SPIRO^® 707

Adaptor for silver cannulae 13/11 mm. Transparent in colour.

For instructions of use, click here

SPIRO^® 708

Adaptor for silver cannulae 14/11 mm. White in colour.

For instructions of use, click here

LAO Endotracheal Tubes

The LAO (Lindholm Anatomical Oval) endotracheal tube conforms to both the contour of the airway and the arytenoid cartilages. This results in safer and more comfortable intubations for the patient (delaying the need for any eventual tracheostomy), thus achieving shorter recovery times and cost savings.

LAO 1071

1 x LAO Size 7 EO sterilised tracheal tube

• Inner diameter 6 x 8 mm; Outer diameter 9 x 11 mm

• Cuff diameter 30 mm

• High volume low pressure cuff

• Suction lumen

• Sold in 10 piece carton (1071-10K)

For instructions of use, click here

LAO 1081

1 x LAO Size 8 EO sterilised tracheal tube

• Inner diameter 7 x 9 mm; Outer diameter 10.3 x 12.3 mm

• Cuff diameter 30 mm

• High volume low pressure cuff

• Suction lumen

• Sold in 10 piece carton (1081-10K)

For instructions of use, click here

Do you want to place an order? Click here!

LAO Endotracheal Tube
